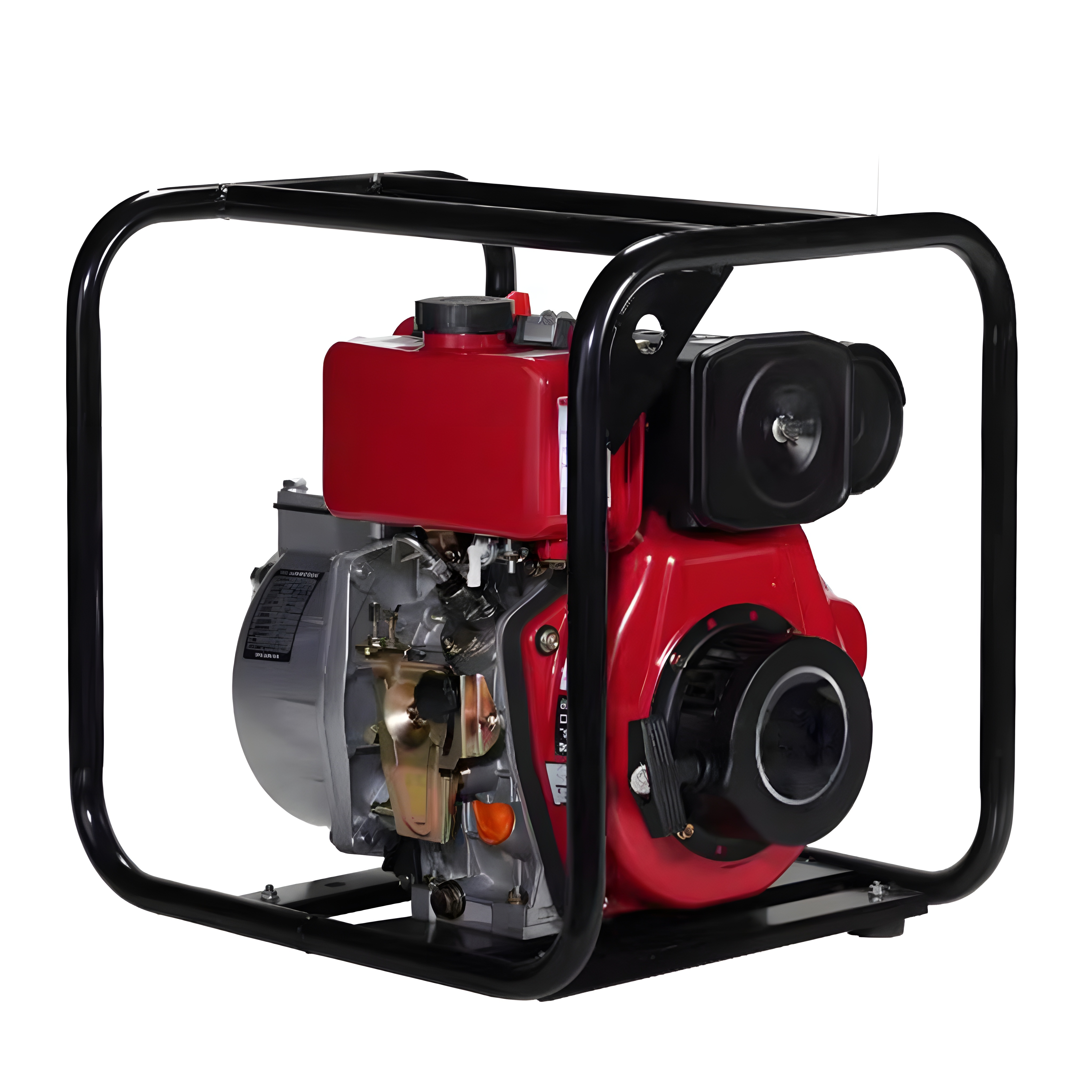

PSBLD178C is a diesel-powered clear water self-priming pump designed for water transfer, agricultural irrigation, and field drainage, providing stable and efficient pumping performance. It is powered by a 178F diesel engine, featuring a single-cylinder, vertical, 4-stroke, air-cooled design, ensuring reliable output and dependable operation in daily working environments.
With a displacement of 296 ml and a bore and stroke of 78 × 62 mm, the engine operates at 3600 rpm for consistent and efficient performance. The pump is equipped with a recoil manual starting system, with optional electric start available for easier operation. Its 3.6 L fuel tank and 1.3 L engine oil capacity support extended working periods.
As a clear water self-priming pump, this model is designed to quickly establish suction and continuously deliver water during operation, making it ideal for clean water applications such as irrigation, drainage, and water supply.
PSBLD178C supports both 3-inch and 4-inch outlet configurations to meet different pumping requirements. The 3-inch model uses 80 mm inlet and outlet diameters, delivering a flow rate of 40 m³/h, a maximum head of 30 m, and a suction lift of 7 m. The 4-inch model uses 100 mm inlet and outlet diameters, delivering a flow rate of 45 m³/h, a maximum head of 20 m, and a suction lift of 7 m. This provides flexibility between balanced head performance and larger water volume output depending on the application.
The overall dimensions are 590 × 470 × 595 mm, with a gross weight of 40 kg. With its compact structure, durable diesel engine, and reliable self-priming performance, PSBLD178C is a dependable solution for agricultural and general-purpose clear water pumping needs.
